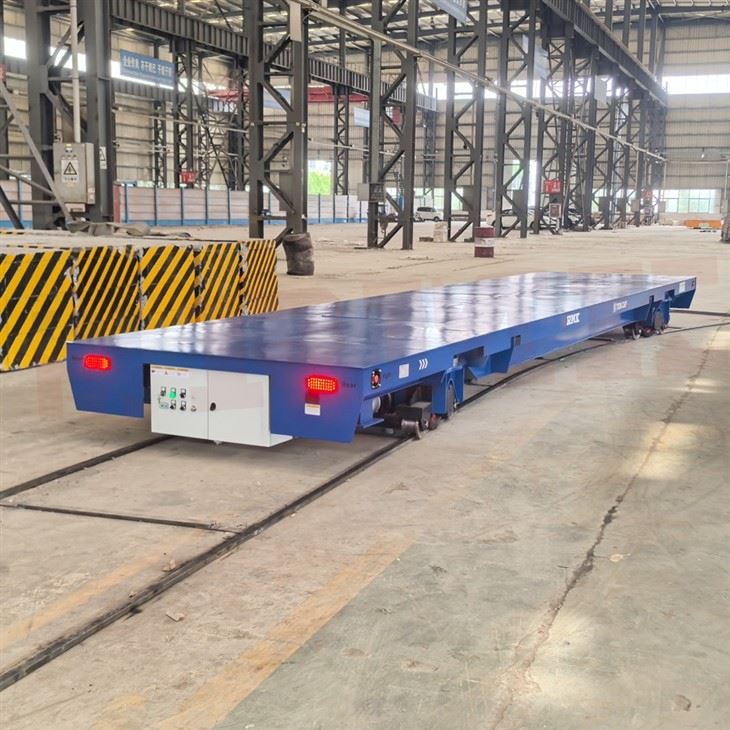

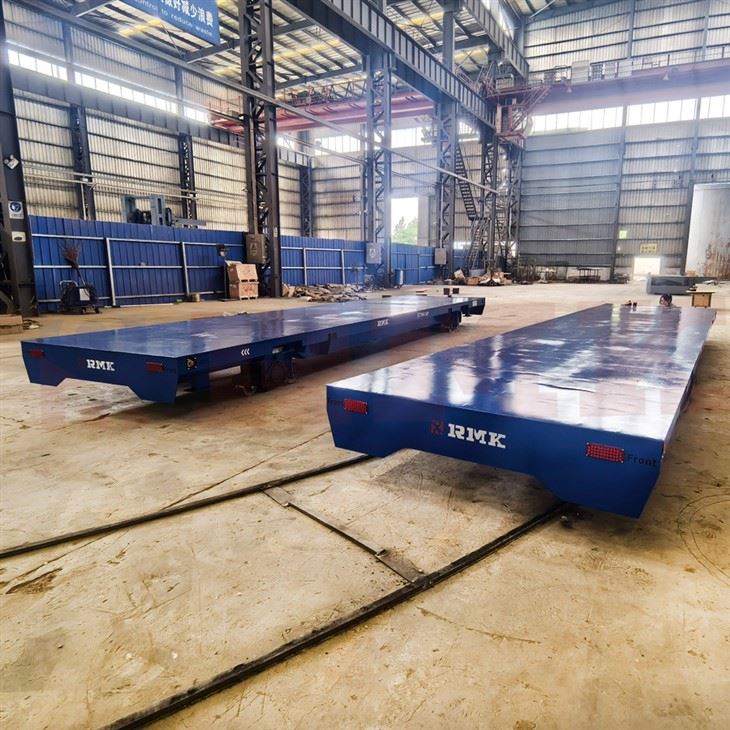

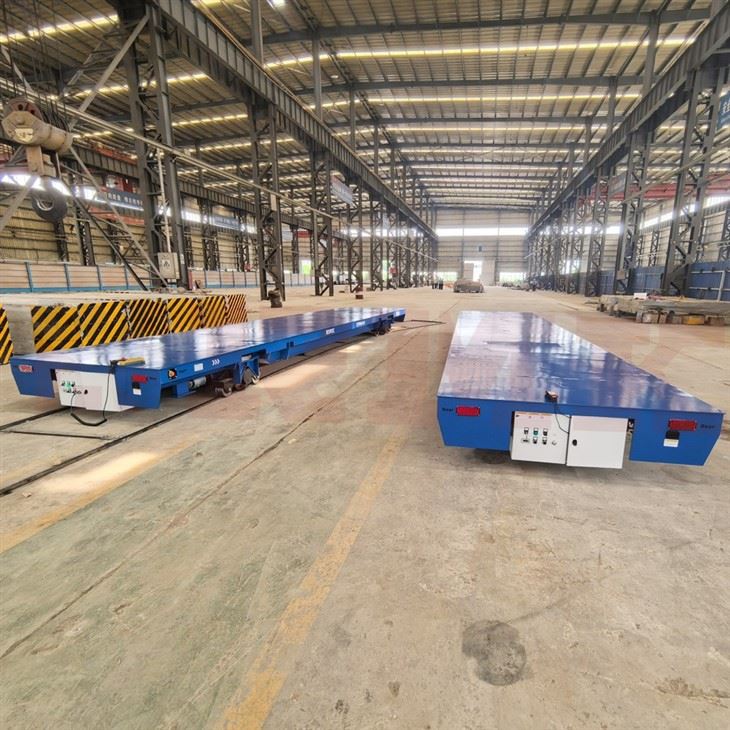

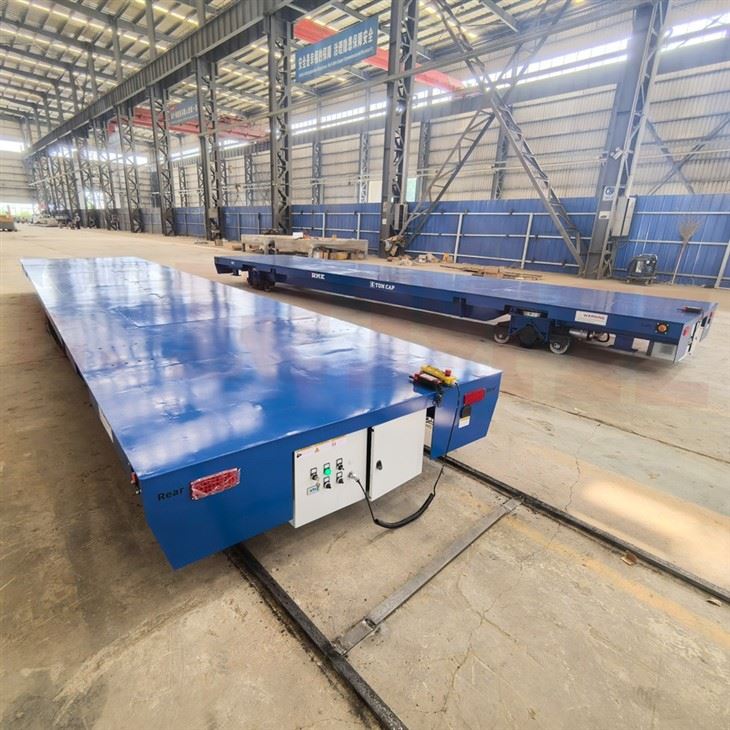

5 Tons Arc-shaped Rail Trolley
S-shaped, circular, and 90 ° track trolley
A factory heavy-duty transfer equipment designed specifically for curved, S-shaped, circular, and 90 ° intersecting tracks. Different from ordinary track flat cars that can only travel in straight lines, it comes with a steering guide mechanism and can continuously travel along curved tracks; Right angle intersections can also be equipped with electric track turntables for stationary turning, which are widely used for cross workshop and circulating heavy-duty material transportation on assembly lines.
The frame drive wheel set is equipped with lateral guide wheels/rotary bogies, and the wheels adopt tapered wheel rims, which automatically adapt to the travel difference between the inner and outer rails in curves, smoothly passing through circular and S-shaped continuous tracks. The frame is welded with integral box girder steel, with a low center of gravity, anti rollover, and not easily deformed under heavy loads; The wheels are made of cast steel drive wheels and multiple sets of side guide wheels, which counteract lateral forces during turning, prevent derailment, and reduce rail wear. Variable frequency deceleration motor, low-speed stable turning, stepless speed regulation 0-20m/min; Battery powered wireless cable free, not limited by wiring, universal for long and short distances, remote control operation, most commonly used in workshops; Suitable for turning and circular assembly lines. Remote control, simple and convenient.
Request For Quotation:
1.What's the transfer cart's load capacity and table size you want?
We can customize it according to your cargo weight and size.
2. How many hours will the transfer trolleys work per day?
Please don't worry, we will design the battery capacity to meet your using time per day, and customize the charger according to your workshop power supply voltage.
3. Is there slope on the ground?
We will design the motor power and brake according to your site ground condition.
4. What spare parts do you want to order?
If using frequency is very high, we suggest you order one motor as spare part to replace after 5 years.
Hot Tags: 5 tons arc-shaped rail trolley, China 5 tons arc-shaped rail trolley manufacturers, suppliers, factory
