Industrial Towing Trolley
Industrial Towing Trolley Applications – Used in:
Steel plants
Automotive assembly lines
Shipbuilding
Heavy machinery transport
Industrial Industrial Trailers Types:
Manual Towing Trolley – Requires operator effort or a tugger.
Powered Towing Trolley – Self-propelled with electric or hydraulic drive.
Rail-Based Trolley – Runs on tracks for precise movement.

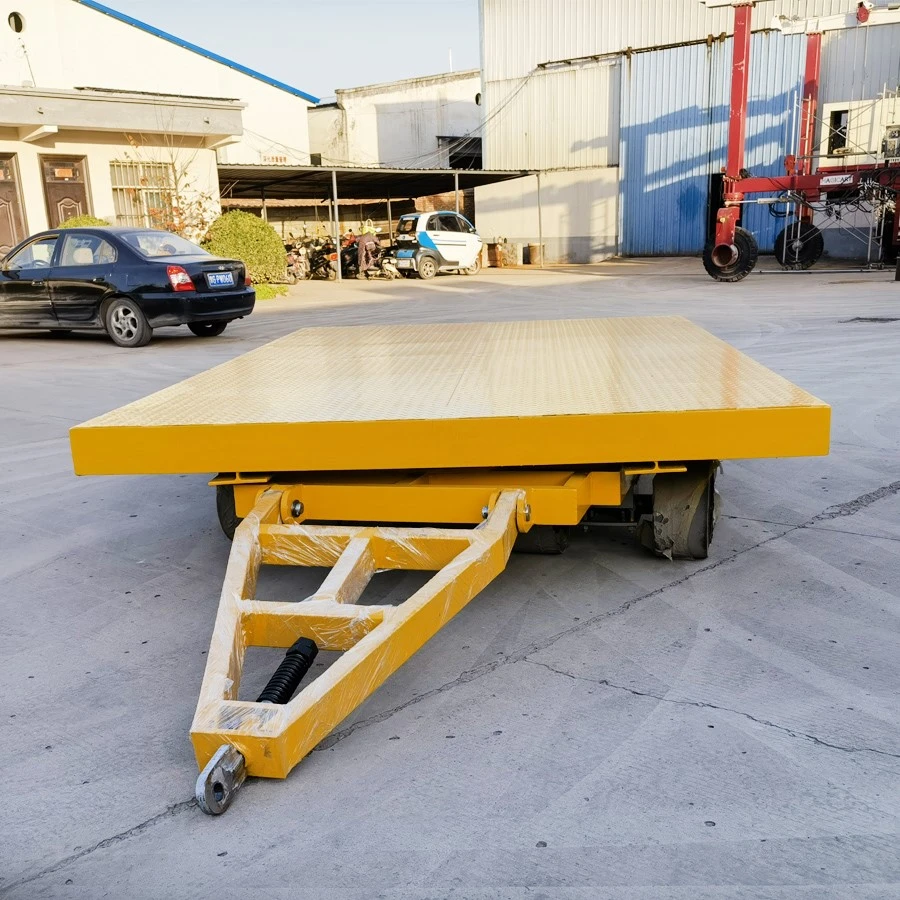

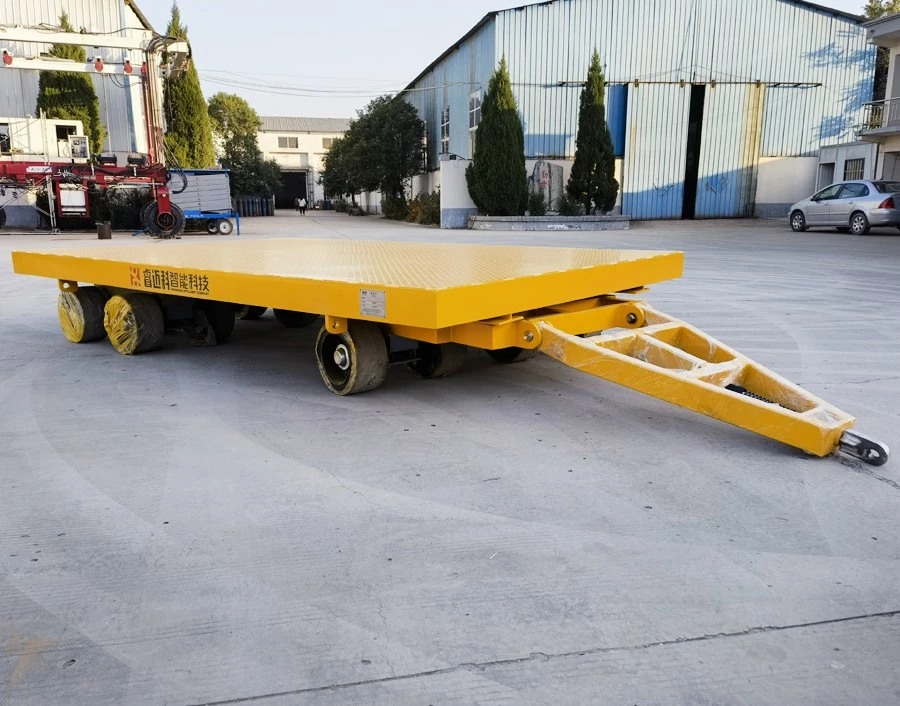

Trackless Industrial Trailers:Solid rubber tires for direct ground travel. It can be moved by powered or unpowered traction.
Safety Considerations:
Ensure proper load distribution.
Check wheel and brake conditions regularly.
Use on flat, stable surfaces to prevent tipping.
Contact us for a free consultation based on your requirements. Remarkable sells its Industrial trailers worldwide!
Industry Transfer Carts solution
| RWT无轨拖车技术参数表Technical Parameters Table Of RWT Trackless Trailer | |||||||
| 额定载重Rated Load Capacity(t) | 5 | 10 | 15 | 20 | 30 | 40 | |
| 台面尺寸 Table Size(mm) | 长 Length | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
| 宽 Width | 1600 | 2000 | 2000 | 2200 | 2200 | 2500 | |
| 高 Height | 600 | 650 | 700 | 700 | 850 | 850 | |
| 操作方式Operation Method | 被动牵引Passive Traction | ||||||
| 行走速度Running Spee(km/h) | ≤5 | ||||||
| 车轮数量Wheel Quantity | 4 | 4 | 8 | 8 | 8 | 12 | |
| 车轮直经Wheel Diamete(mm) | Ф435×150 | Ф400×200 | Ф457×203 | Ф457×229 | Ф559×254 | Ф559×254 | |
| 车轮材质Wheel Material | 实心橡胶Solid Rubber | ||||||
| 车体颜色Vehicle Body Color | 黄色/蓝色/根据要求定制 Customized | ||||||
| 注：1) 其它台面尺寸,载重吨位可根据用户需求定制; 2)产品会不断改进升级,表内参数可能存在变动. Notes: 1) Other table sizes and load capacities can be customized according to user requirements. 2)The product is subject to continuous improvement and upgrades; specifications in the table may change without prior notice. |
|||||||
