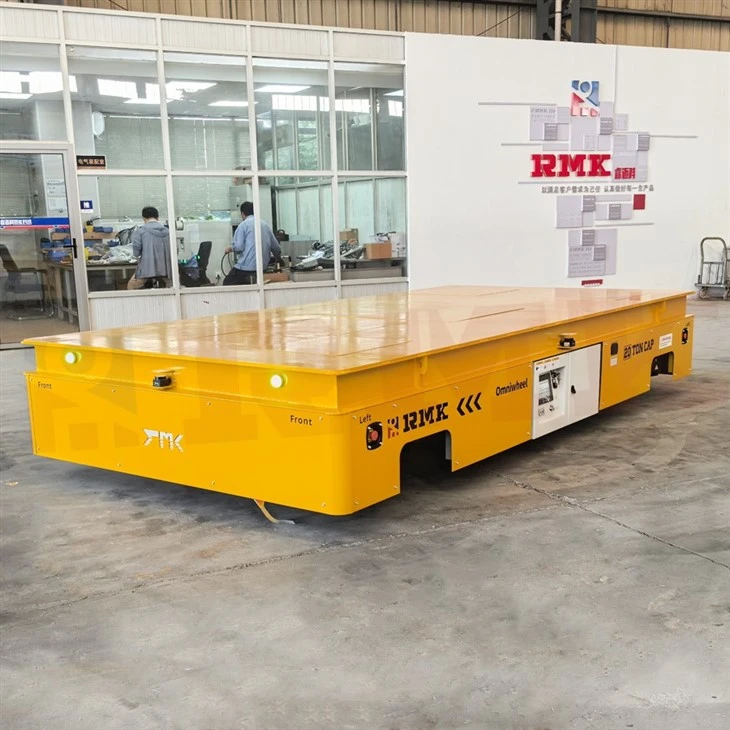

20 Tons Steel Beams Omni-directional Transfer Trolley

This 20-ton omnidirectional transfer trolley is a battery-powered trackless heavy-duty handling vehicle specially customized for long, bulky, high-weight steel beams, H-beams, box girders, steel structure fabricated components and profile steel. Equipped with independent omnidirectional steering wheel system, it breaks the limitation of fixed rails and traditional forklifts, realizing flexible in-plant turnover of 20-ton heavy steel beams in narrow workshops, curved passages and compact production areas. It greatly improves handling safety, protects finished steel beam surfaces from collision deformation, and optimizes factory internal logistics efficiency.

Core Working Principle about heavy duty transporter

Omni-directional Steering System Adopts heavy-duty load-bearing steering drive units (differential steering hubs / heavy-duty Mecanum wheels optional). Each wheel set achieves independent rotation and driving, supporting multiple movement modes: forward & backward, lateral side shift, diagonal traveling, crab walking, and 360° zero-radius in-situ rotation. It can turn around in a small space without large turning radius.

Drive & Power System DC/AC variable frequency driving motors matched with heavy reducers output stable torque for 20-ton full load operation. Powered by industrial lead-acid battery or lithium battery, fully trackless design with no ground embedded rails, no damage to workshop floor.

Control System Dual control modes: wireless remote handheld controller + onboard fixed control panel. Stepless speed regulation, slow start & slow stop to prevent steel beam sliding and shaking during transportation.

Safety Protection Loop Integrates emergency stop button, anti-collision radar/infrared sensor, overload protection, low battery alarm, fault self-diagnosis and braking locking device.

Application Scenarios

Steel structure fabrication plants (H-beam, bridge box girder, building prefabricated steel components turnover)

Bridge engineering component processing workshops

Heavy machinery manufacturing, large equipment frame processing workshops

Prefabricated construction component factories

Metal processing, steel cutting and welding production lines

Shipbuilding, new energy wind tower steel frame processing workshops

Advantages & Competitive Strengths

Superior Space Maneuverability Zero turning radius solves the biggest pain point of steel structure factories: narrow workshop aisles, many production equipment obstacles, difficult turning for forklifts and rail transfer carts.

Track-Free & Low Civil Engineering Cost No need to lay steel rails on the ground, save construction cost and cycle, will not destroy the integrity of the workshop ground.

Better Protection for Steel Beam Workpieces Smooth startup and braking + fixed positioning bracket avoid scratching, bending and collision damage of high-value finished steel beams, reduce scrap loss.

High Load Stability & Safety Multi-point wheel load distribution, overload automatic power-off protection, anti-collision sensor to stop automatically when encountering obstacles, greatly reduce industrial safety accidents.

Wide Compatibility & Customization Platform length, width, lifting function, explosion-proof grade, intelligent automatic driving can all be non-standard customized according to the maximum length, weight and processing flow of customer's steel beams.

Trackless Transfer Cart General Specifications

Rated load: 10~50 tons (customizable)

Movement: forward, backward, side shift, diagonal travel, in-place rotation

Travel speed: 0~25 m/min, stepless speed regulation

Control: wireless remote + onboard handle

Power source: LiFePO4 lithium battery or lead acid battery

Max gradient (full load): ≤3%

Protection class: IP54

Optional extras: thermal insulation cover, water cooling system, AGV navigation, anti-slip platform, high-temperature wheel assembly
