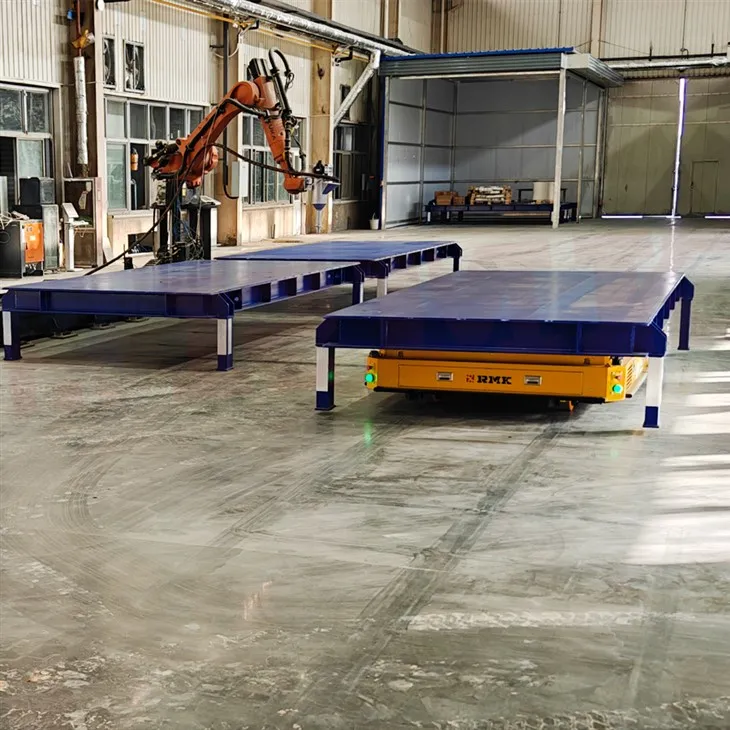

Pallet AGV

The pallet-type AGV project designed and manufactured for our customers consists of AGV transfer carts, pallet racks, navigation systems, on-board control systems, dispatch systems, battery power supply systems, manual chargers, etc. It includes a full set of services such as scheme planning, design, manufacturing, installation and commissioning, training, and technical support for all AGV transfer carts. This is a transfer project for 3D printing equipment supplied to CCCC Group. It is designed to support remote control operation and autonomous driving. While meeting equipment transportation requirements, the system is safe, stable, reliable, economical, advanced, and forward looking to adapt to the development of automation.

Send Inquiry

Product Introduction

The pallet-type AGV project designed and manufactured for our customers consists of AGV transfer carts, pallet racks, navigation systems, on-board control systems, dispatch systems, battery power supply systems, manual chargers, etc. It includes a full set of services such as scheme planning, design, manufacturing, installation and commissioning, training, and technical support for all AGV transfer carts.

This is a transfer project for 3D printing equipment supplied to CCCC Group. It is designed to support remote control operation and autonomous driving. While meeting equipment transportation requirements, the system is safe, stable, reliable, economical, advanced, and forward looking to adapt to the development of automation.

8Ton Lifting Pallet Automated Guided Vehicle (AGV) with Laser Navigation

The AGV transfer cart initially parks in the charging area / designated area in standby mode. The operator sends commands to the cart via wireless network using the ground control system. After receiving the command, the AGV moves under the designated pallet, lifts it, and travels to the designated storage location.

Once the goods are stably placed on the pallet, the operator sends a destination command. The cart travels along the preset route and delivers the goods to the designated position, and the cycle repeats.

The AGV transfer cart is equipped with a manual operation mode, which allows the cart to be controlled via a wireless remote controller to perform all handling functions.

transfer trolley

battery transfer cart

8 Ton Lifting Pallet AGV Technical Parameters

No.	Type	Parameter	Remarks
1	Equipment Name	AGV-8t
2	Rated Load (t)	8
3	Platform Size (mm)	3500×1700
4	Platform Height (mm)	400
5	Travel Speed (m/min)	0–25	Adjustable speed
6	Power Supply	Lithium battery
7	Automatic Charger	Automatic charging + Manual charging
8	Operation Time	Approx. 4 h
9	Charging Time	≤ 4 h
10	Braking Mode	Electromagnetic braking	Power off brake
11	Number of Wheels	4 steering wheel units + 4 casters
12	Wheel Material	Polyurethane coated wheel
13	Movement Mode	Forward, backward, lateral movement, longitudinal movement, diagonal movement, spot turning
14	Navigation Mode	Laser SLAM navigation
15	Control Mode	Automatic operation
16		Wireless remote control / wired control handle
17		Industrial tablet
18	Platform Lifting	Full platform lifting
19	Lifting Height (mm)	100
20	Lifting Type	Hydraulic
21	Protection Measures	Laser navigation obstacle avoidance	270° front and rear
22		Audible and visual alarm light
23		Emergency stop button
24		Safety edge
25	Body Color	Yellow	Customizable by customer
26	Positioning Accuracy	±20 mm
