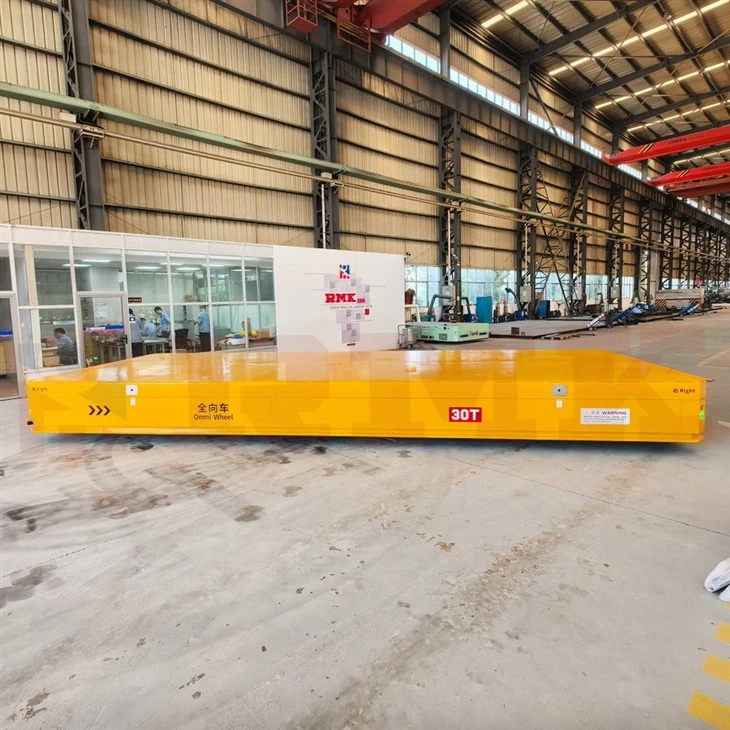

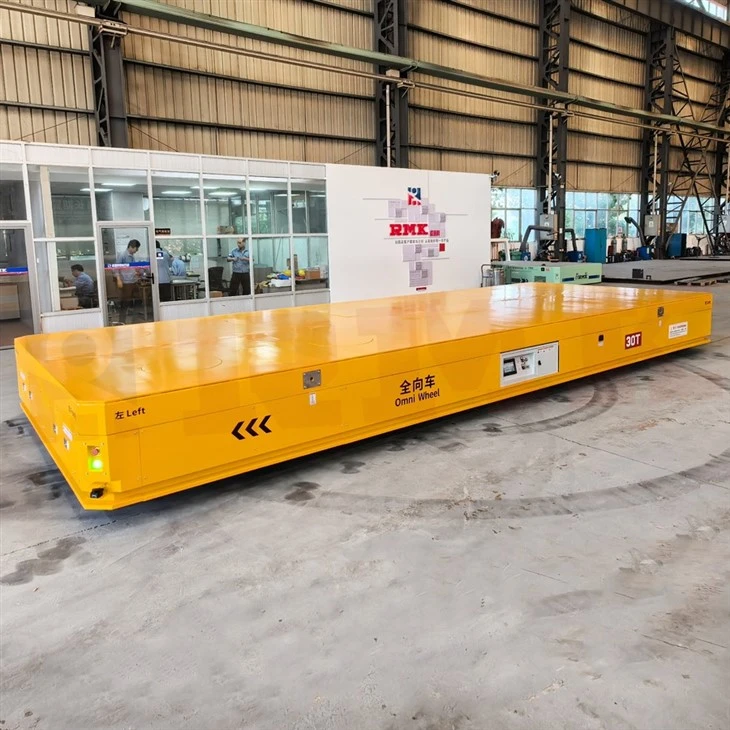

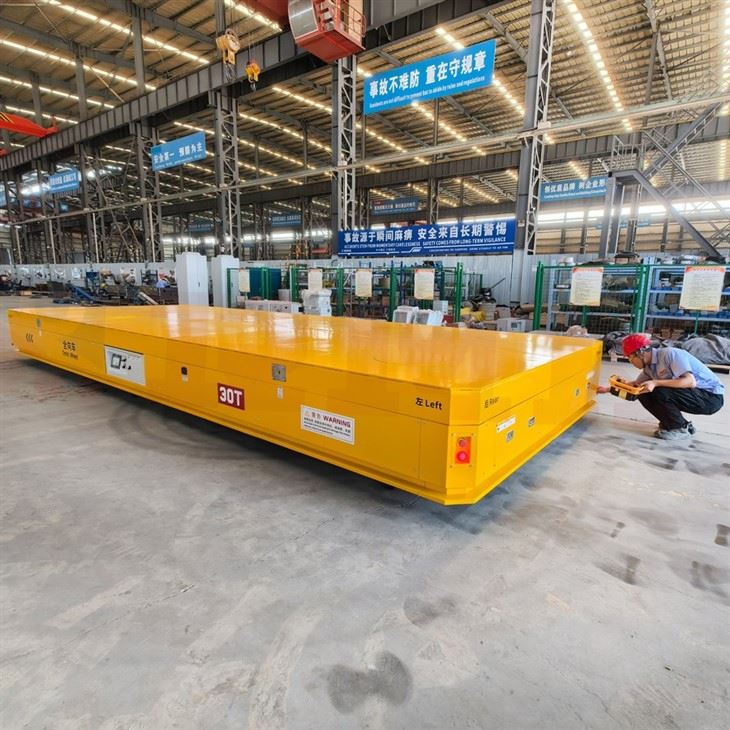

30 Tons Oil Tank Container Omni-directional Transfer Cart

Core Product Advantages

1 Omni-directional Flexible Movement, Zero Turning Radius

Equipped with four sets of independent precision steering wheel units, the cart supports multiple movement modes including straight driving, lateral translation, oblique walking, in-situ 360° rotation and arbitrary curve driving. Different from conventional transfer carts that require a large turning space, this omni-directional design achieves zero turning radius operation, enabling free steering and flexible position adjustment in narrow aisles and compact working areas. It greatly saves workshop and yard space, eliminates repeated positioning operations, and significantly improves the overall handling efficiency of oil tank containers.

2 Heavy-load Stable Structure, Deformation-resistant Bearing

The whole cart body is welded with high-strength integral steel plates, with optimized mechanical structure and uniform force-bearing design. It effectively disperses the heavy load of 30-ton oil tank containers, ensuring no deformation or shaking during full-load operation. The matching bearing platform is precisely customized according to the structural characteristics of oil tank containers, which can closely fit the tank body, prevent sliding and offset during transfer, and fully guarantee the stability and safety of heavy cargo handling. Adopting adaptive suspension technology, the wheel set can automatically adapt to uneven ground, keeping the cart body balanced in complex road conditions.

3 Trackless Free Driving, Wide Adaptability

This transfer cart adopts a trackless design, no need for pre-laying tracks or fixing operation routes. It can operate freely on cement floors, steel floors and flat ground of workshops, docks and warehouses. It avoids the high cost of track laying and later maintenance, and breaks the space limitation of fixed routes. It can flexibly adjust the handling route according to on-site operation needs, suitable for diversified and variable oil tank container transfer scenarios.

4 Intelligent & Efficient Operation, Low Energy Consumption

Powered by high-performance battery pack (lithium battery or lead-acid battery optional), the equipment features stable power output, long endurance, energy saving and environmental protection, and no exhaust emission. It supports two control modes: wireless remote control and on-board manual operation, with simple operation and flexible switching. Equipped with precision driving and speed regulation system, it realizes stable start and stop and stepless speed regulation, avoiding cargo vibration caused by sudden speed change and protecting the integrity of oil tank containers. In addition, the equipment has low failure rate and low daily maintenance cost, reducing long-term operation investment for enterprises.

Professional Safety Protection System

Aiming at the high safety requirements of petroleum and chemical industry operations, this oil tank container transfer cart is equipped with a full-range safety protection mechanism to eliminate operational risks from the source:

Obstacle Avoidance & Emergency Stop: Built-in high-sensitivity laser obstacle avoidance radar and mechanical safety edge device, which can real-timely sense surrounding obstacles and personnel. It will automatically decelerate and stop in case of obstacles, and trigger emergency stop immediately to avoid collision accidents.

Overload & Voltage Protection: Equipped with intelligent overload protection, overvoltage and undervoltage protection systems. It will automatically cut off power and alarm in case of overload operation or abnormal power supply to protect the equipment circuit and structural safety.

Sound-light Alarm: Standard sound-light warning device, which will automatically alarm during starting, running and steering to remind on-site personnel to avoid, ensuring standardized on-site operation.

Explosion-proof Customization Support: Optional explosion-proof configuration is available, which meets the safety operation standards of flammable and explosive environments in petrochemical industry, adapting to special working conditions of oil tank storage and transfer.

Main Application Scenarios

This 30-ton omni-directional transfer cart is specially tailored for oil tank container handling, and is widely applicable to multiple scenarios:

Petrochemical plant: Transfer and positioning of large oil storage tanks, chemical liquid tanks and pressure vessels in workshops;

Port and terminal: Short-distance turnover and yard arrangement of oil tank containers;

Logistics storage yard: Stacking, moving and loading/unloading of standardized oil tank containers;

Energy and manufacturing industry: Handling of heavy fluid storage tanks and supporting container equipment;

Heavy industrial workshop: Narrow-space transfer of large-scale tank containers and heavy-duty equipment.
