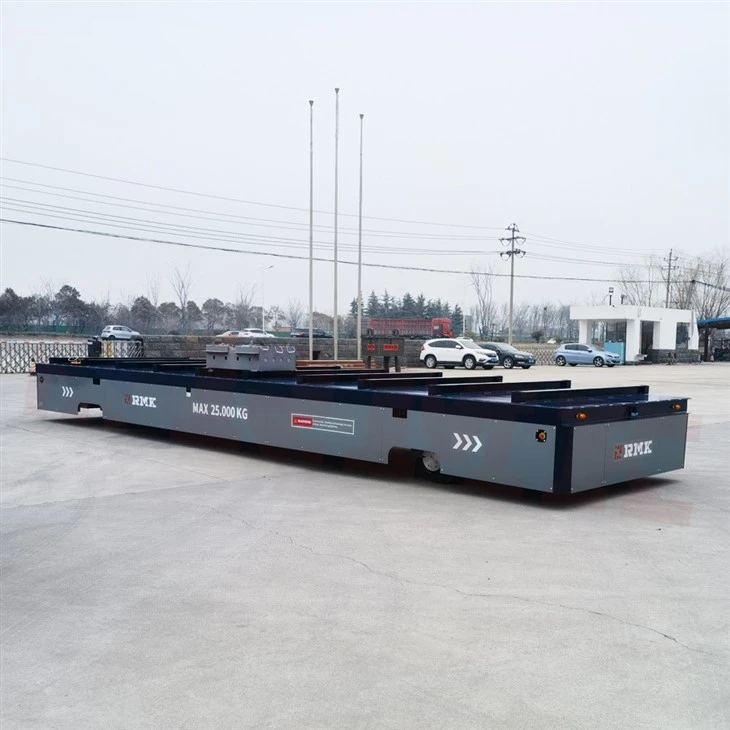

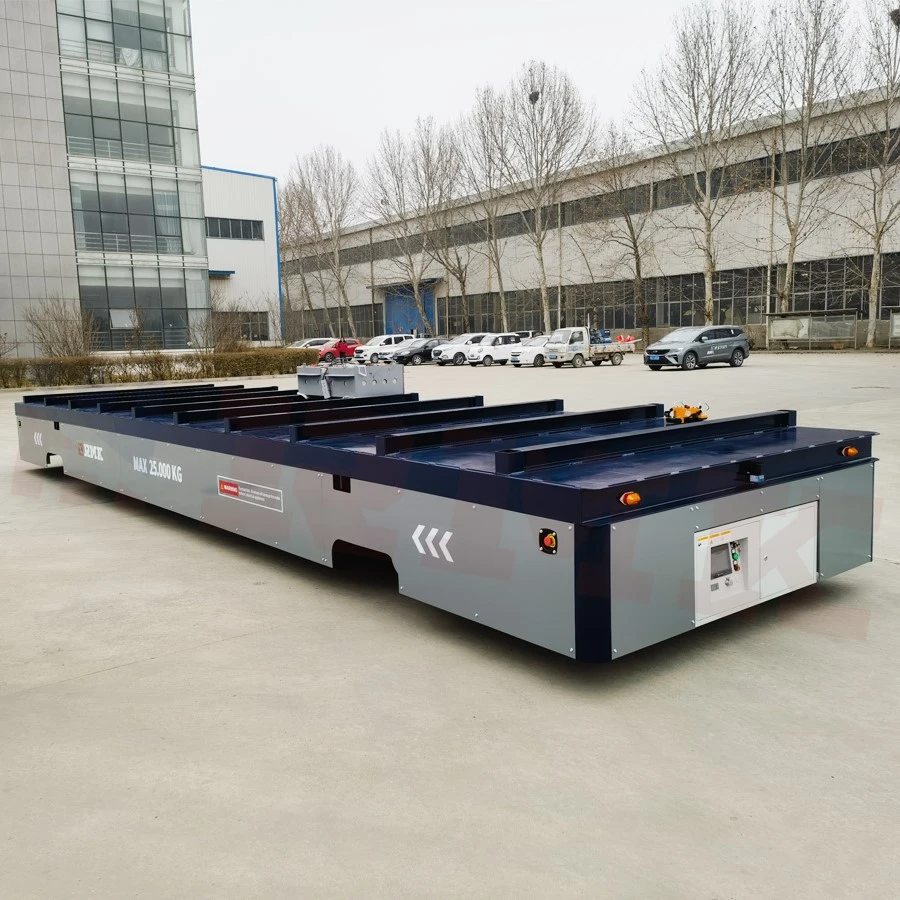

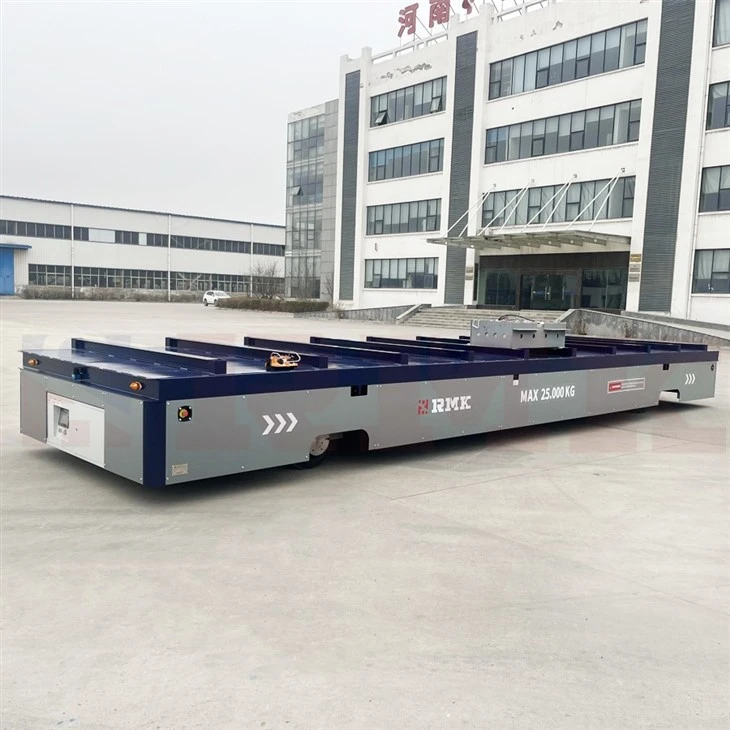

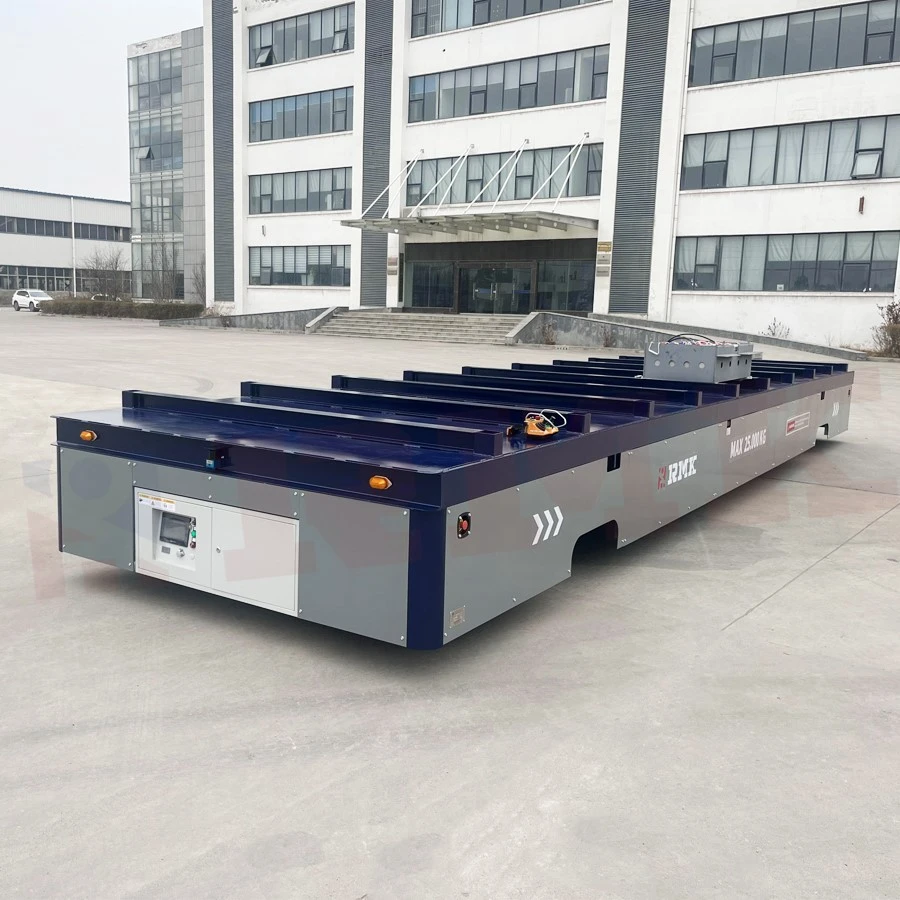

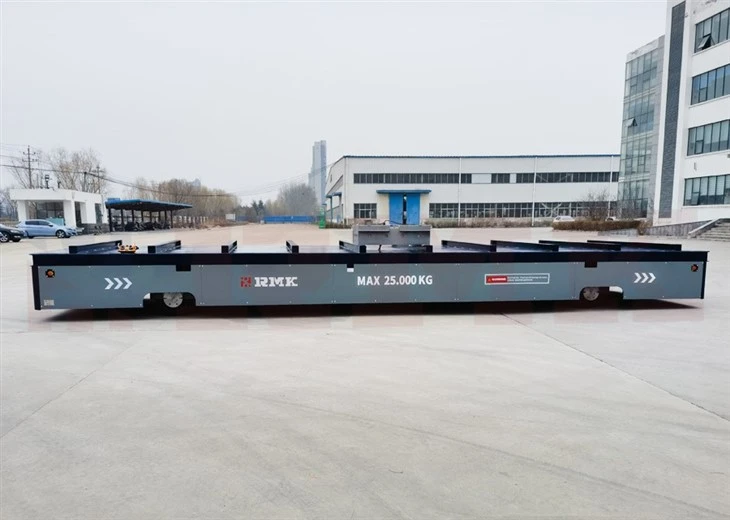

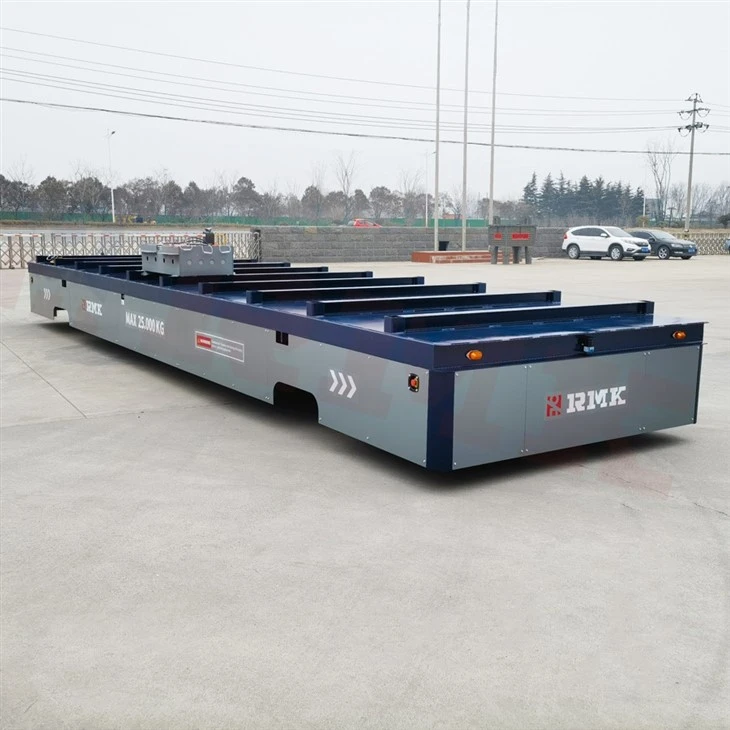

25 Ton Self-propelled Battery-powered Transfer Cart

In the production chain of modern heavy industry, material handling efficiency directly determines an enterprise's core competitiveness. For in-plant short-distance transportation of 25 ton heavy workpieces, molds and raw materials, traditional solutions relying on overhead cranes, fixed rails or diesel forklifts can hardly meet the requirements for flexibility, environmental protection and high efficiency. The Remarkable 25 Ton Self-propelled Battery-powered Transfer Cart is a ground logistics solution integrating heavy load capacity, great flexibility, intelligence and long endurance, engineered for heavy-duty transportation under complex working conditions.

1.Heavy Load Capacity, Oversized Platform

The transfer cart Rated load capacity up to 25 tons, with platform dimensions of 11000×2500×900mm. It is ideal for transporting long steel sections, large molds, wind power components and heavy mechanical equipment. The thickened steel plate welded frame guarantees deformation resistance and long service life under heavy loads.

2.Superior Maneuverability, Omni-directional Movement

To cope with narrow workshops and complex routes, this model battery transfer cart can be equipped with single-axis steering or omni-directional movement system. The omni-directional version supports straight travel, side shifting, 360° in-place rotation and diagonal movement at any angle. It achieves track-free and precise multi-directional movement, removing space restrictions for heavy material handling.

3.Long Endurance, Green Power Source Fitted with large-capacity industrial battery packs.

It can run continuously under full load for no less than 8 hours on a single charge, meeting two-shift production schedules. The battery supports charging via 220V/380V industrial power supply with wide compatibility. Lithium battery option is available for fast charging and maintenance-free operation.

4.Wide Environmental Adaptability, Verified for Harsh Climates Designed and manufactured in accordance with climate category У3–У4 of GOST 15150-69

The electric transfer cart operates stably within a wide temperature range from -45℃ to +40℃. It maintains excellent starting performance and operational reliability, whether in outdoor plants under frigid northern winters or enclosed stuffy workshops in the south.

5.Precision Radio Remote Control, Single-operator Operation Equipped with industrial radio remote control system.

Operators can control forward, reverse, steering, speed regulation and braking remotely from a safe distance. Electromagnetic brake and emergency stop device are standard, featuring fast response and instant halt upon obstacle detection to ensure safety for operators and equipment.

We are a high-tech enterprise specializing in R&D and manufacturing of heavy-load AGVs and electric transfer carts, located in a renowned industrial hub for hoisting machinery in China. Our factory covers over 10,000 square meters, equipped with advanced CNC cutting equipment, automatic robotic welding lines and precision machining centers.

Technical Strength: Our experienced mechanical, electrical and software engineering team masters track-free steering control, synchronous hydraulic lifting and BMS (Battery Management System) integration technologies.

Strict Quality Control: ISO 9001 quality management system is implemented throughout the whole process from profile cutting and frame welding to vehicle assembly. Every cart undergoes full-load dynamic testing, 8-hour continuous running burn-in test and extreme environment simulation test before delivery.

Customization Service: We offer comprehensive non-standard customization tailored to unique industrial scenarios. Optional configurations include V-shaped supports, turnover mechanisms, explosion-proof treatment and hydraulic lifting systems. We can quickly provide custom drawings and solutions.

By choosing us, you get not only equipment, but also a reliable long-term partner. We provide full-cycle support including pre-situ survey, solution design, on-site commissioning, operator training and lifelong technical support.

Handle heavy loads at your fingertips; move freely with intelligent power. Welcome new and existing customers to visit Remarkable for inspection and business negotiations!
